Sugar Land (Fort Bend County), TX Flood Zone & Drainage Map

Address
Overview

Where does rainwater drain in Fort Bend County? This interactive map shows surface drainage patterns across Sugar Land, Missouri City, Richmond, and surrounding areas based on terrain shape - where gravity directs rainwater based on elevation and slope. For official flood risk information, see the FEMA flood zone layer on the Hazards tab.

Fort Bend County's flat terrain and clay-heavy soils create slow drainage infiltration, channeling surface runoff toward the Brazos River and Oyster Creek. Rapid suburban development has increased impervious surface area, intensifying runoff volumes during heavy rainfall events like Hurricane Harvey. Choose a location to see surface drainage analysis and water flow direction based on terrain shape. The first three locations are free.

Interpretation

Select a location on the map or enter an address to see terrain analysis.

3D Terrain Visualization
Where does rainwater flow based on terrain shape? Blue areas show where water collects and drains downhill.
Units
Report a problem
—

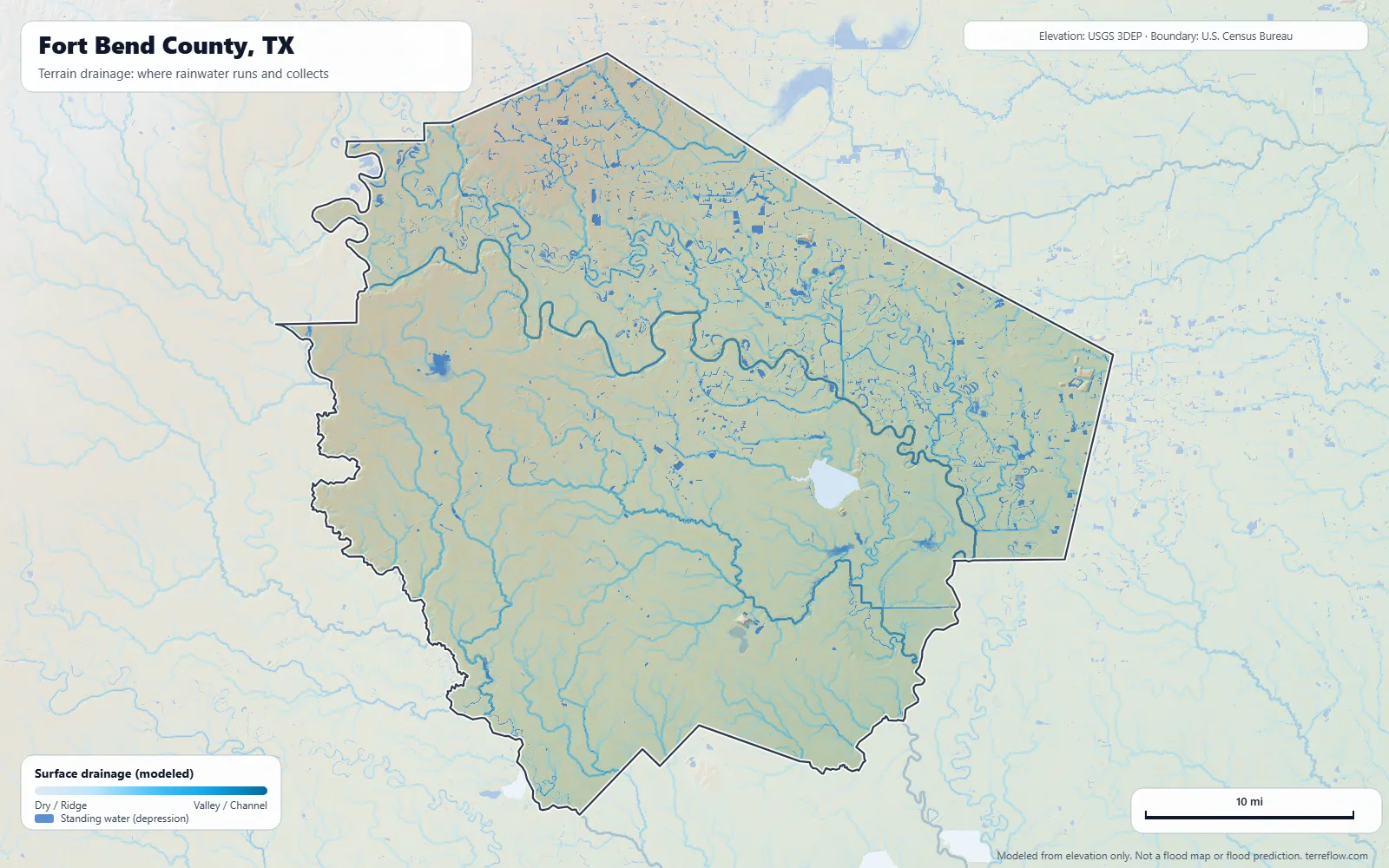

Terrain drainage map of Fort Bend County, TX: modeled paths where rainwater runs and collects, from USGS 3DEP elevation data, with the county boundary Click any spot on the map to analyze it
4.0× Horizontal:Vertical
Elevation loading...

Fort Bend County flood history

FEMA records 7,389 flood insurance claims in Fort Bend County since 1978, with about $450 million paid. 72% of the claims with a rated flood zone came from moderate- or low-risk zones (X, B or C), outside the high-risk areas on FEMA’s flood maps.

Bar chart of FEMA flood insurance claims per year in Fort Bend County, TX, 1978 to 2026, highest in 2017 (Hurricane Harvey) with 3,977 claims.

Biggest flood years

  1. 2017 · Hurricane Harvey · 3,977 claims
  2. 2016 · Early summer severe storms · 631 claims
  3. 2015 · Early summer storms · 332 claims
  4. 2008 · Hurricane Ike · 273 claims
  5. 2019 · 245 claims

ZIP codes with the most claims

ZIPClaimsShare
7745999813.5%
7740695312.9%
7745091312.4%
774796028.1%
774765657.6%
774694345.9%
774713354.5%
774893314.5%

How to read this. These are National Flood Insurance Program claims, so they count only insured buildings and miss flooding where owners had no flood insurance. FEMA publishes them without names or addresses: they show which years and areas flooded, never whether a particular house did. ZIP codes are as reported on the claims, and a ZIP code can extend beyond the county. The “rated” flood zone is the one used to price the policy and may come from an older map. Data as of 2026-09-08, from FEMA OpenFEMA.

Next: look up the flood zone for an address · how to check whether a specific house has flooded · why Zone X can still flood · how to read the drainage map

Sunlight and soil in Fort Bend County

Sunlight. Ground here gets about 4.9 kWh of sunlight per square meter per day on average, above the middle of the lower 48 (4.5). South-facing slopes get more, north-facing ones less.

Soil. The ground is mostly swelling clay (Vertisols 62%), with loamy soil over a clay-rich subsoil (Luvisols 38%). Rain soaks in slowly, so more of it runs off. Swelling clay also shrinks and cracks as it dries, which can move slabs and foundations.

The Solar and Soil tabs on the map above show both for any address. Read more: how much sun does my property get? · what soil type is my property, and how it affects drainage

Sunlight: long-term average on flat ground from the National Solar Radiation Database (National Laboratory of the Rockies, formerly NREL). Soil: most likely soil types from ISRIC SoilGrids, a 250 m model, not a survey of any lot. Both cover the map area above.
